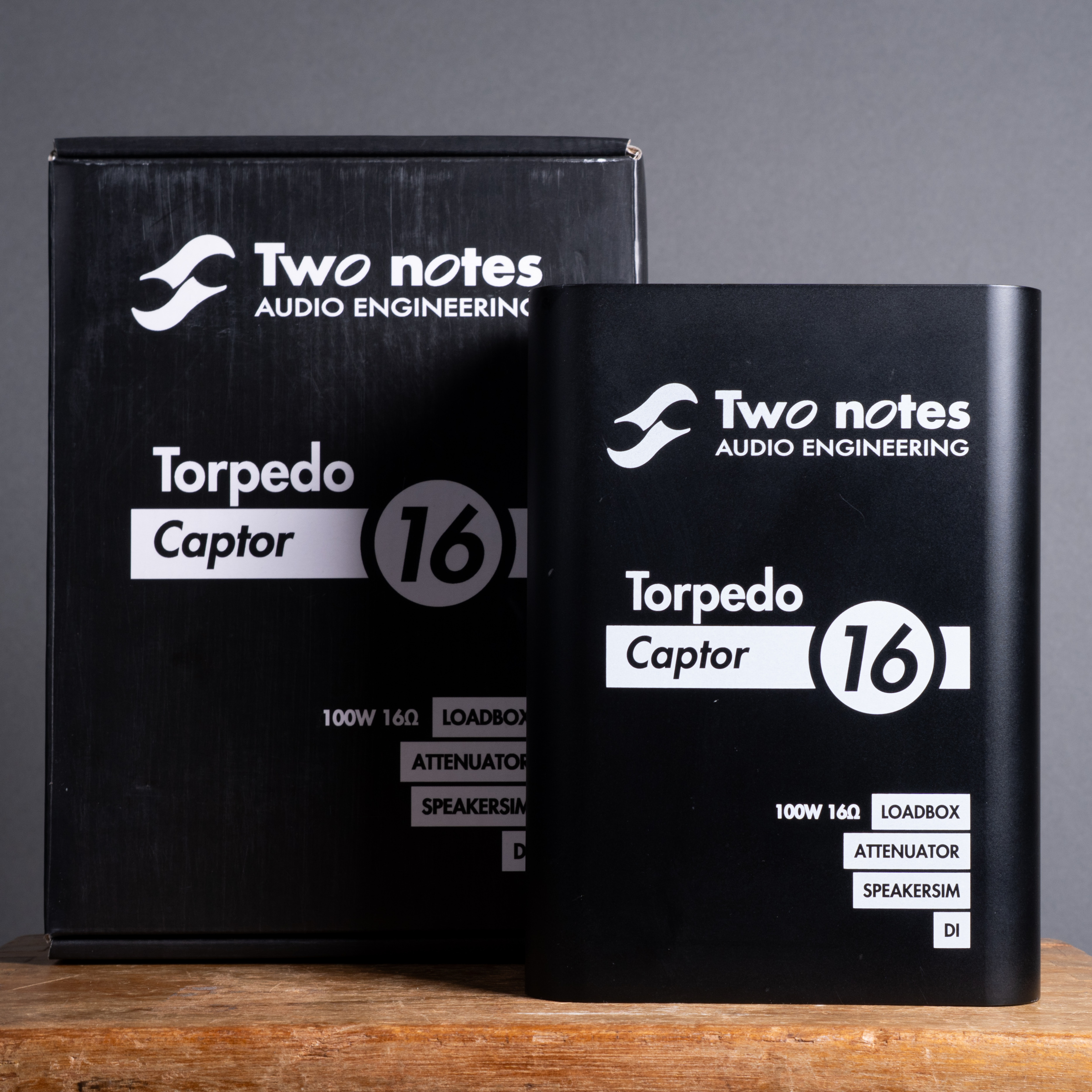

Excellent condition and in perfect working order with original box. This unit shows light signs of use, but is overall very clean and functions without issue.
From Two Notes: The Torpedo Captor allows you to capture a rich sound for direct recording without having to mic your speaker. Used without a speaker, it allows you to use your amp head in silent mode without any risk. If you wish to keep using a cabinet, the Torpedo Captor features a direct speaker THRU or ATT output which sends either the full volume of the amp to the cabinet or a fixed -20dB attenuation. It also offers a balanced XLR active DI output with selectable guitar or bass simulation taken from Two notes critically acclaimed Le-series preamps, as well as a balanced line output with adjustable output level and polarity.
Input/Output
Speaker input / 1/4″ jack unbalanced (TS)
Speaker Attenuated Output / 1/4″ jack unbalanced (TS)
Speaker Thru / 1/4″ Jack unbalanced (TS) - Directly connected to Speaker Input (Loadbox disconnected when in use)
Line Output / 1/4″ Jack balanced (TRS) - Impedance: 1000 Ohms - Phase switch - Ground lift (Without speaker simulation)
DI Output / XLR balanced - Impedance: 600 Ohms (With or without speaker simulation)
Analog speaker sim / Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone / Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone
Load box
Impedance / 4, 8 or 16 Ohms
Max admissible power / 100W RMS
Safety system / Temperature-controlled fan / Active thermal safety
Dimensions & weight
Width x Depth x Height
12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″ (Including connectors and knobs)
Weight: 1000 g / 2.2 lbs
Power / Input voltage
Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center
Current draw / 5mA
Power input connector / DC connector, 2.1mm x 5.5mm, center negative (Power is required only for the XLR DI output and analog speaker sim)
